How To Wire 5 Pin Lighted Rocker Switch ~ 12 Volt 5pin Carling Type Rocker Switch Led Light Bar Rocker Switch Wiring Diagram Buy Rocker Switch Wiring Diagram Carling Rocker Switch Wiring Diagram 12 Volt Rocker Switch Wiring Diagram Product On Alibaba Com. 5 pin rocker switch wiring harness. Pin 2 is where the accessory that the switch is going to turn on is connected. How to wire 5 pin lighted rocker switch : Wiring a light bar switch can seem like an intimidating task but it's actually quite the opposite and you can have all the wiring done under 5 minutes. Also relays can be used to switch higher draw.

Pin 1 is where the rocker switch receives the input power. If you want to know how to wire a 4 pin led switch, following instructions tailored for a 3 pin one is going to leave you. Anchor light red led light rocker switch on off 5 pin dc12v 24v for marine boat car accessories led light rocker switch lighted rocker 5 pin toggle switch wiring diagram 77 corvette wiring diagram free download schematic fisher wire yenpancane jeanjaures37 fr wiring diagram. How to wire 5 pin lighted rocker switch / extras.in this video we are giving a tutorial on how to wire a rocker switch with led (6 and 7 pin wiring diagrams) to control a linear progressive automations products used in this project: I have a 5 pin rocker switch (can find them cheap on amazon) and i am just wondering how i connect the wires so the switches light up when the dash backlights come on and also dim with dash lights if possible.

How to wire 5 pin lighted rocker switch :

4 pin led switch wiring shouldn't cause any headaches if you follow the right diagram. Pin 1 is where the rocker switch receives the input power. 5 pin rocker switch wiring harness. How to wire a 4 pin led switch. The wiring diagram to the right shows how the contacts and lamps are wired internally. Also relays can be used to switch higher draw. If you want to know how to wire a 4 pin led switch, following instructions tailored for a 3 pin one is going to leave you. Wiring a light bar switch can seem like an intimidating task but it's actually quite the opposite and you can have all the wiring done under 5 minutes. In this video we are giving a tutorial on how to wire a rocker switch with led (6 and 7 pin wiring diagrams) to control a linear progressive automations products used in this project: The dual led allows you to illuminate part of the switch with your dash lights. To wire a 3 pin switch to a 5 pin rocker switch you need to find out what your 3 wires do. Also relays can be used to switch higher draw accessories to reduce switch load and voltage drop. Also i mention where all the positive.

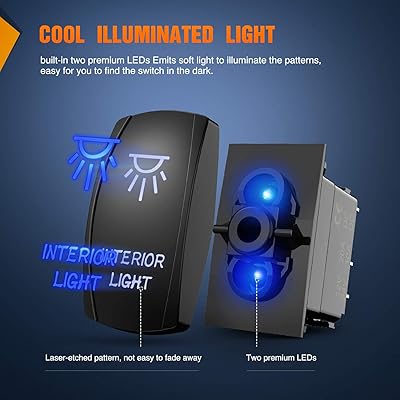

There are 2 rows of pins, 3 pins in each row, the middle one is the common terminal, corresponding to the two left and right pins, one is normally open and the other is normally closed. You might want to review the article on toggle switch wiring before proceeding. It can stand up to 10,000 times pressing under normal use. Pin 1 is where the rocker switch receives the input power. This dpdt illuminated rocker switch has two dependent lamps, one top and one at the bottom.

You might want to review the article on toggle switch wiring before proceeding.

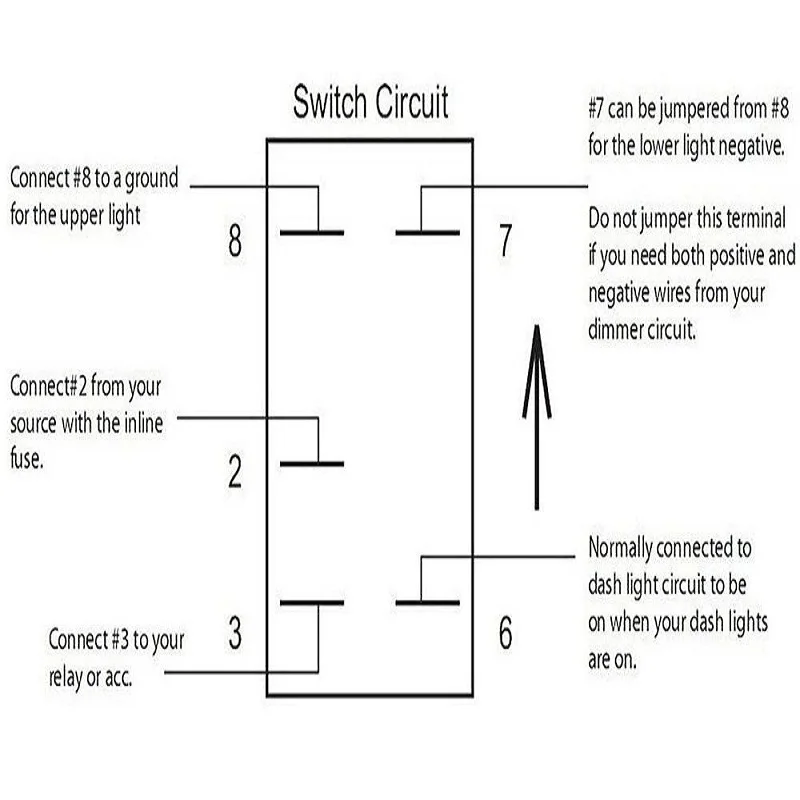

I had nothing to do so i made this quick how to video. This dpdt illuminated rocker switch has two dependent lamps, one top and one at the bottom. You might want to review the article on toggle switch wiring before proceeding. It is a full double pole double throw (dpdt) rocker switch 4 pin led switch wiring shouldn't cause any headaches if you follow the right diagram. I did some research and bought this rocker switch. I have a 5 pin rocker switch (can find them cheap on amazon) and i am just wondering how i connect the wires so the switches light up when the dash backlights. How to wire a dual led rocker switch 5 pin i had nothing to do so i made this quick how to video in this video i show you how to wire a dual led rocker switch the dual. If you're familiar with the 5 pin rocker spst where the top light comes on when the switch is pressed on, pin #6 is positive to turn on the bottom light of the switch. It sends 1 (or 2) sources to 2 outputs. I have two of work lights i am installing but just need a bit of advice when wiring the switch. Wire the center pin of the pulse bar to pin 2 (input) of the switch. The dual led allows you to illuminate part of the switch with your dash lights.

How to wire 5 pin lighted rocker switch : Wire the center pin of the pulse bar to pin 2 (input) of the switch. The first power wire must be long enough to reach from the power source (usually a battery) to the acc connection on the switch. It really is supposed to help all of the common consumer in creating a suitable system. The diagram below represents the schematic diagram for a spst rocker switch:

These guidelines will likely be easy to understand and apply.

This dpdt illuminated rocker switch has two dependent lamps, one top and one at the bottom. You might want to review the article on toggle switch wiring before proceeding. If you want to know how to wire a 4 pin led switch, following instructions tailored for a 3 pin one is going to leave you. An illuminated rocker switch is like a spst toggle switch with an extra terminal which allows the light to work. Pin 3 is where the switch is either connected to ground or left open. The vjd1 rocker switch has 7 prongs on the back, called terminals. You might want to review the article on toggle switch wiring before proceeding. The diagram below represents the schematic diagram for a spst rocker switch: I have a 2012 super. The second power wire must be long enough to reach from what you're powering (like a light) to the power connection on the switch. This makes it very easy to see your switches at. This video is showing how to wire a rocker toggle switch with a led indication light. 5 terminal rocker switch wiring diagram another picture:
